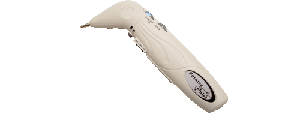

L3710 Pointer Pulse

  • Laser and Transcutaneous Electrical Nerve Stimulation (TENS) devices are used for the symptomatic relief of chronic (long term) intractable pain and as an adjunctive treatment in the management of post surgical traumatic pain problems.
  • Laser is also used as a substitution of invasive acupuncture treatment. Laser acupuncture means directly irradiating some key body points on the surface of the skin hand held pulsed Laser and pulsed T.E.N.S.

  • Features
  • Modern Spring Type Probe Tip
  • Sensitivity Adjustment
  • Immediate Point Location and Treatment
  • T.E.N.S. Stimulation and or
  • Laser stimulation continuous or 10 Hz pulsed laser stimulation

  • Advantages of Laser Stimulation
  • Painless and without sensation of numbness
  • Harmless, no tissue damage
  • Complete sterility

  • Technical Specifications
    For Electric stimulation
    Channel: One
    The Peak of Output Current: micro current,
    Blue zone on dial (0-2 mA)
    Black zone on dial (2-45 mA)
    ±20% (on 500 ohm loading)
    Pulse Rate: 10 Hz (fixed) ±20 %
    Pulse Width: 260 µS (fixed) ±20 %
    Pulse Shape: Biphasic Square Wave with a negative spike- Zero DC component
    Wave Form: Continuous
    Indicator Lamp: Green lamp indicates the stimulation & detection mode
    For Laser stimulation
    Laser Wavelength: 650nm
    Maximum Power Output: 5mW, solid state diode. Do not stare at laser beam directly or through optical instrument.
    Laser Pulse Duration: 52 ms

    (Only at Position II for pulsed laser output at a frequency of 10 Hz)

    Indicator Lamp: Yellow lamp indicates the laser operation

    Turn the Laser switch to "I" or "II" to operate the device in laser mode. The yellow LED will light when the device is successfully in laser mode. Use "I" position for continuous laser output and "II" position for pulsed laser output. "II" positions operate at a frequency of 10 Hz.

    Power Source: 9V alkaline battery, Or its equivalent
    Unit Dimensions: 210 x 45-85 x 24 mm
    Unit Weight: 100 gm (unit only), 380 gm (complete set)


    - 1 grounding pole
    - 1 Screw driver
    - Instruction Manual
    - The unit and its accessories are packed in a hard ABS plastic carrying case
