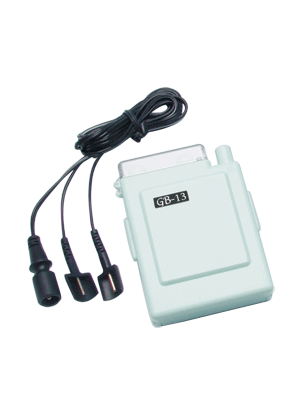

T3605 Model GB-13 T.E.N.S.

Device Specifications-GB-13
Channel: Single
Output Voltage: 0-35 Volt (500 ohm Load)
Output Current: 0-70 mA (500 ohm Load)
Waveform: Symmetric biphasic rectangular
Frequency: 1-100 Hz adjustable
Pulse Width: +220 micro seconds positive
- 220 micro seconds negative
Output Modes
- Burst Mode(B): 1.2 seconds per burst ON
1.2 seconds per burst OFF
- Constant Mode(C): Regular output
- Modulation Mode(M): Pulse width is automatically varied in a cycle pattern in the range of 440 micro-seconds decrease to 200 micro-seconds in 1.2 seconds and onward from 200 micro-seconds increase to 440 micro-second in 1.2 seconds.
Power Source: 2 pieces of 1.5V batteries
Output Jack: 2.5 mm diameter Jack
Unit Dimensions: 86 x 64 x 23 mm(Excluding belt clip)
Weight of the unit:87 grams ( including belt clip)
Tolerance: ± 10%
Output parameters are across a 500 Ohm resistance.
