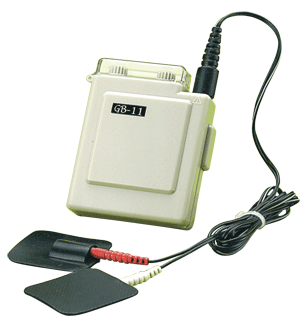

T3602 Model GB-11 T.E.N.S.

A Single Channel T.E.N.S. Unit Easy & Simple to use

Device Specifications - GB-11
Channel: Single
Output Voltage: 0-30 V (500 ohm Load)
Output Current0-60 mA (500 ohm Load) Constant
Waveform: Symmetric biphasic rectangular
Frequency: 0.5-50 Hz adjustable
Pulse Width: 200 micro seconds
Power Source: 2 pcs. Of 1.5V batteries
Output Jack: 2.5 mm diameter jack
Unit Dimension: 86 x 64 x 23 mm (excluding belt clip)
Weight of Unit: 85 grams (including belt clip)
Tolerances: ± 10%

Output parameters are across a 500 Ohm resistance. /div>
