A3930 Model AWQ-105 PRO Transcutaneous Electrical Nerve Stimulator (Acupuncture Stimulator)
AWQ-105 PRO Transcutaneous Electrical Nerve Stimulator Multi - Channels
It is a professional, brand new unit with 5 channels. It comes up with a modern design and inherits the features of AWQ-series acupunctoscope. This professional unit provides multiple functions and features, which are essential in daily acupuncture practice.

Features & Advantages
  • 5 outputs (including an output exclusively for the use of
        search/stimulation probe for point detection and immediate
        stimulation.)
  • Frequency and Pulse Width are adjustable & separated into two groups,
        Group 1 for Ch 1 & 2 , and Group 2 for Ch 3 & 4.
        (Instead of one Frequency and one Pulse Width for all channels)
  • 2 large LCD (each measures 15X30 mm) for displaying precise
        frequency of each group, and one LCD (15x30 mm) for showing
        sensitivity during acup-point detection. This LCD also displays the
        frequency (fixed at 10 Hz) during direct stimulation by the
        search/stimulation probe.
  • 3 different Mode; Cont (continuous), Modulate and Burst.
  • High & Low selection of output. X1 and X5 (multiplier) of pulse rate and
        width adjustments.
  • Timer selection for different period of treatment session. Continuous,
        15 minutes and 30 minutes.
  • Buzzer ON/OFF, for sound control during point detection.
  • Steady output intensity increment control, no cross over,
        and no interference between each output.
  • Music for timer alert and error warning.

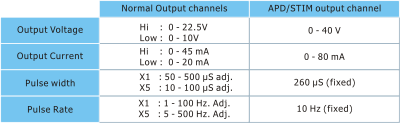

    • Technical Specifications
    Output channel: 5 Channels (including one channel for "APD/STIM")
    APD & Stim mode: LED lights up in "Stim" mode, and is flashing when "Stim button" is pressed.
    Waveform: Asymmetric Square Wave with a negative spike
    Pulse width:50 -500 µS adjustable, when in X1 position
    10 -100 µS adjustable, when in X5 position
    Pulse Rate: 1-100 Hz, adjustable, when in X1 position
    5-500 Hz, adjustable, when in X5 position
    Mode:Constant - pulse rate and width are adjustable from 1-100 Hz, & 50-500 µS respectively at X1 position, and from 5-500 Hz, & 10-100 µS respectively at X5 position,

    Modulation - Preset Pulse Rate and width ramp up and down for 6 seconds per one cycle; both pulse rate & width are adjustable.

    Burst - Preset Pulse Rate and width [ON] 3 seconds; [OFF] 3 seconds; both pulse rate & width are adjustable.
    Timer: Cont ; 15 min; 30 min
    Display: 3 LCD, each measure 15x30 mm
    Low battery lamp: The LED lights when voltage drops to 7V
    Power supply: C Size (LR 14) batteries x 6 pcs
    Output socket: 1.5mm diameter socket.
    Error / Timer LED:Error LED: Red LED lights up & music sounds when turn ON the unit without reset all previous channels setting to zero output.
    The device resumes work after reset all channels to zero position.

    Timer LED: When the set time is up, orange LED lights & music sounds. The device resumes work after reset all channels to zero position
    Weight: 726g (main unit only)
    Size: 255 x 175 x 75 (mm) (main unit only)
    Specifications Tolerance: ±20%
    Accessories: Search/stimulation probe with handgrip electrode
    Connecting wire (4 assorted colors ) 4 pcs.
    Instruction manual 1 pc.
