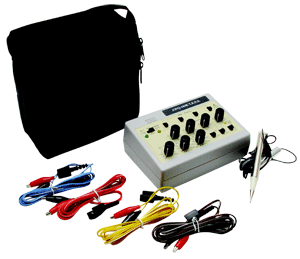

A3339 Model AWQ-104E Multi-Purpose Electronic Acupunctoscope

New, improved, portable acupunctoscope and with four outputs.

Features
  • Four (4) output channels
  • New IC circuitry, no cross over
  • Polarity reversal switch for each channel
  • Sensitive point location with both light and sound indication
  • "Loc-Needle-Stim" treatment and location switch
  • High/ Low voltage switch: low for needles, high for TENS
  • Continuous, intermittent, and dense-disperse (modulated) wave forms
  • Two frequency range setting: 0 to 120 and 10 to 1200 Hz
  • Improved alligator clip wires and detection probe
  • Low battery indicator

    • Specifications (500 ohm test load)
    Frequency, x1: 1 to 120 Hz
    Frequency,x10 : 10 to 1200 Hz
    Output current : 0 ~ 18 mA r.m.s. (Low) (500 ohm loading)
    0 ~ 40 mA r.m.s. (High) (500 ohm loading)
    Output : 4 independent channels
    Pulse width : X1 (350 μS), X10 (40 μS)
    Pulse shape : Biphasic square wave
    Point detection : sound and light indication
    Power supply : 9 volt battery
    Dimensions : 15.5 x 10.5 x 6 cm (6" x 42" x 2.2")
    Weight : 330 grams (0.7 lbs), unit only
    Tolerance : ± 20%

    Accessories
    Pen shaped search/treat probe with hand
    Grounding pole1 pc.
    Improved wire4 sets
    9V battery1 pc.
    Artificial leather carrying case1 pc.
    Instruction manual 1 pc.
